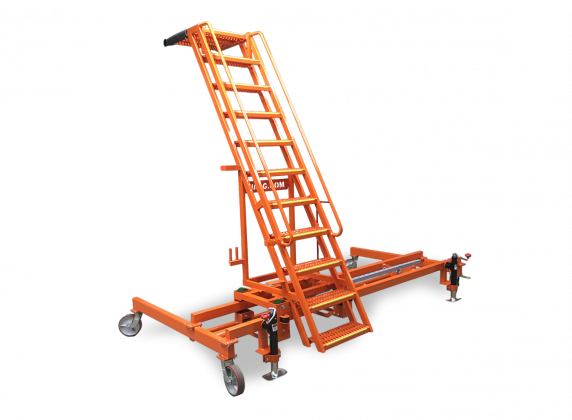

Main Landing Gear Access Ladder #40211
Optional Accessories & Customizable Features:
- Traction Tread design for passenger access
- Special padded handrails for aircraft protection against handrail while using the stand at an opposite direction.
- Self-Closing Safety Gates for Top Deck
- Deck Handrail Extensions
- Fall Protection and more
- Custom versions tailored to your specific needs and aircraft model are available upon request
Recommended for: B777 / B787

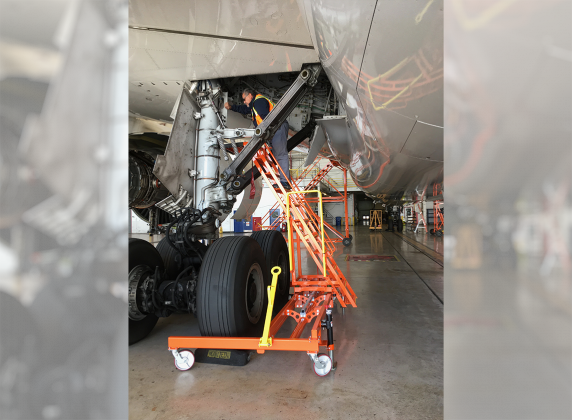

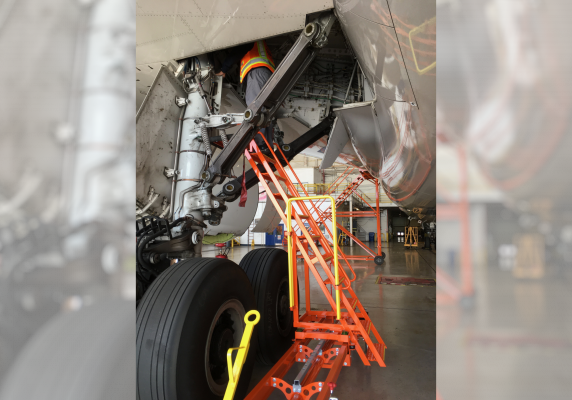

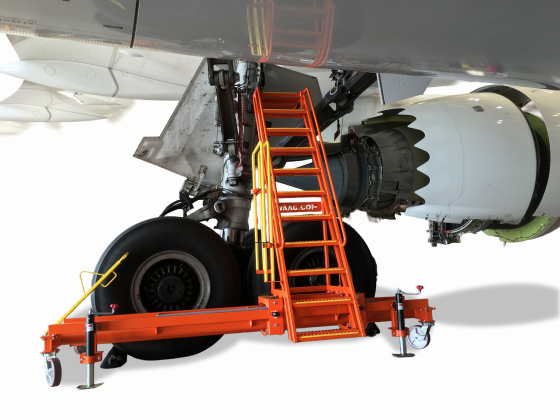

Our unique design features a ladder that can slide laterally 42″, in 3″ increments to access B777 / B787 landing gear access and B777 trunnion lube points.
Key Features:
Heavy-Duty Construction: Innovative design, heavy-gauge tubing and substantial cross-bracing to create lightweight stands that are built to last.
Easy to Maneuver: Our stands feature the highest quality wheel components, and can be easily positioned in place by one person.
Swivel wheels: 8″ x 2″ Urethane-Over-Steel wheels with precision bearings and heavy-duty KPL swivels.
Sure Footing: Galvanized steel Grip Strut on stair steps that feature our signature baked on safety yellow leading edge.
Safety Rails: Heavy-wall safety rails can adjust for different door heights. y-wall steel stair rails provide added safety, strength and rigidity to the stand.
O.S.H.A.: Compliant forward ascent and descent stair.
Towable: Heavy-duty tow bar comes standard on all stands.
Stability Jacks: Raise and lower to safely secure stand
Ultra-Durable Finish: Powder coated with WAAG high visibility orange and an additional UV-resistant clear coat. Select colors available upon request.
Shipping: Shipped in one piece. F.O.B. WAAG, Van Nuys CA.
Dimensions
Top Deck: 20″ L x 20″ W x 110″ H
Ladder Slide Range: 42″ with stops every 3″
Overall Footprint: 72″ L x 128″ W
